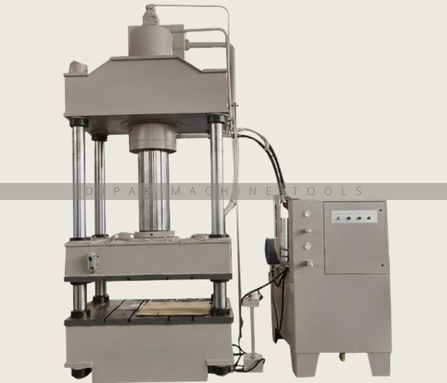

Four Column Hydraulic Press
Our Four Column Hydraulic Press by Dipak Machine Tools is a heavy-duty industrial machine designed for precision pressing, forming, punching, and deep drawing applications. Built with a robust four-pillar structure, it ensures uniform load distribution, high stability, and accurate ram movement for consistent results.
Equipped with a powerful hydraulic system and durable components, this press delivers smooth operation, high pressure performance, and long service life. Ideal for automotive, fabrication, and manufacturing industries, our Four Column Hydraulic Press is available in customized capacities to meet specific industrial requirements.
OUR SPECIALITY
Frame Design
Hydraulic press frame design focuses on rigidity, stability, and load distribution using materials like high-grade steel, with common types being robust H-frames (open-front, easy access) and precise four-post designs (guides for alignment). Key considerations include structural analysis (FEA) for stress and deflection, material selection (high-tensile steel, cast iron), precision machining (honing, alignment), and integral components like cylinders and guides for durability and safety.
Hydraulic System
A hydraulic press uses a hydraulic system, based on Pascal's Law, to generate immense compressive force by applying pressure to a confined fluid (like oil) with a small input force on a small piston, which then gets amplified to a large force on a large piston, enabling tasks like shaping metal, molding, and assembling parts in manufacturing, automotive, and construction industries. The system includes a pump, fluid, cylinders, valves, and a control system to manage fluid flow and pressure for precise, powerful operations.
Single Or Multi Action
Hydraulic presses can be single-action (one-way force) for simple tasks like stamping or multi-action (double/triple-action) for complex deep drawing, offering bidirectional force and better control for intricate parts in automotive, aerospace, and electronics. Single-action presses are simpler, cheaper, and good for basic operations, while multi-action presses are more complex, expensive, but provide greater versatility, speed, and precision for advanced manufacturing.
Fully Customizable
hydraulic presses are highly customizable, with manufacturers like Beckwood Press and Royal Hydrotech offering bespoke designs for specific tonnage (e.g., 30-2000 Ton), frame types (C-frame, H-frame, 4-column), and features like hot/cold pressing, catering to unique industrial needs for forming, straightening, or assembly. Customization involves tailoring the frame, hydraulic system, controls, and specialized tooling to the application, making them versatile for various manufacturing processes.
​KEY FEATURES
-
Strong four-column structure for uniform load distribution
-
Heavy-duty construction for high-pressure applications
-
Precision hydraulic system for smooth and controlled operation
-
Accurate ram movement for consistent results
-
High load capacity and durability
-
Easy operation with user-friendly controls
-
Low vibration and stable performance
-
Customizable design for various industrial applications
-
Energy-efficient hydraulic system
-
Low maintenance and long service life
Standard Accessories
-
Controller
-
Electric Motor
-
Movable Foot Switch
-
Stroke Counter
-
Variable Stroke Adjustment With Limit Switch
Optional Accessories
-
Quick Die Change System
-
Pressure Strip
-
Photo Safety Curtain
TECHNICAL SPECIFICATION
Diagram
About Four Column Hydraulic Press
Dipak Machine Tools Is Leading Manufacturer And Exporter Of Four Column Hydraulic Press Machine In Rajkot, Gujarat, India.​
​
A Four Column Hydraulic Press is a powerful and highly efficient industrial machine designed for heavy-duty pressing, forming, punching, bending, and deep drawing operations. Known for its superior load distribution, structural stability, and precision performance, this type of hydraulic press is widely used across various manufacturing and engineering industries. At Dipak Machine Tools, we specialize in manufacturing high-quality Four Column Hydraulic Press machines that are engineered for durability, accuracy, and consistent industrial performance.
​
With years of experience in industrial machine manufacturing, Dipak Machine Tools has established a strong reputation for delivering reliable and high-performance hydraulic press machines. Our Four Column Hydraulic Press machines are designed using advanced engineering techniques, premium-grade materials, and modern manufacturing processes to meet the demanding requirements of industrial applications.
• Advanced Design and Robust Construction
The Four Column Hydraulic Press is designed with a rigid four-pillar structure that ensures uniform load distribution and excellent alignment during pressing operations. This design minimizes deflection and provides high stability, making it ideal for precision applications and heavy-duty work.
​
At Dipak Machine Tools, our presses are manufactured using high-strength steel and precision-machined components to ensure long service life and reliable operation. The four-column structure allows smooth vertical movement of the ram while maintaining accurate positioning, which is critical for achieving consistent results in industrial processes.
​
Our machines are equipped with high-performance hydraulic systems, ensuring smooth pressure application, controlled motion, and efficient operation. The advanced hydraulic system also reduces energy consumption while maintaining high productivity.
• Key Features of Four Column Hydraulic Press
Our Four Column Hydraulic Press machines are designed with advanced features to deliver superior performance:
-
Strong four-column structure for uniform load distribution
-
Heavy-duty construction for high-pressure applications
-
Precision hydraulic system for smooth and controlled operation
-
Accurate ram movement for consistent results
-
High load capacity and durability
-
Easy operation with user-friendly controls
-
Low vibration and stable performance
-
Customizable design for various industrial applications
-
Energy-efficient hydraulic system
-
Low maintenance and long service life
​
• Applications of Four Column Hydraulic Press
The Four Column Hydraulic Press is widely used in multiple industries due to its versatility and efficiency. Common applications include:
-
Metal forming and shaping operations
-
Deep drawing and pressing
-
Punching and blanking
-
Bending and straightening
-
Moulding and assembly operations
-
Powder compaction and pressing
​
Industries that use these machines include:
-
Automotive manufacturing
-
Heavy engineering industries
-
Sheet metal fabrication
-
Plastic and rubber industries
-
Electrical and electronics manufacturing
-
Industrial component production
• Performance and Efficiency
Our Four Column Hydraulic Press machines are designed to deliver high productivity and efficiency. The advanced hydraulic system ensures smooth and consistent pressure throughout the operation, resulting in precise and uniform output.
The rigid structure minimizes vibration and ensures stable performance even under heavy loads. This improves the quality of finished products and reduces operational errors. Additionally, the energy-efficient design helps reduce power consumption, making the machine cost-effective for long-term industrial use.
​
• Customization Options
At Dipak Machine Tools, we understand that different industries have different requirements. Therefore, we offer fully customized Four Column Hydraulic Press machines based on:
-
Press capacity (tonnage)
-
Bed size and working area
-
Stroke length and daylight gap
-
Hydraulic system configuration
-
Automation level (manual, semi-automatic, automatic)
-
Control system (PLC-based options available)
Our customization ensures that each machine meets specific operational needs and delivers maximum efficiency.
​
• Quality Assurance and Manufacturing Standards
Quality is our top priority at Dipak Machine Tools. Every Four Column Hydraulic Press is manufactured under strict quality control standards to ensure durability, performance, and safety.
Our manufacturing process includes:
-
Use of high-quality raw materials
-
Precision machining and assembly
-
Advanced hydraulic system integration
-
Performance testing and inspection
Each machine is thoroughly tested before delivery to ensure reliable performance in industrial environments.
​
• Why Choose Dipak Machine Tools
-
Trusted industrial machine manufacturer
-
High-quality materials and precision engineering
-
Wide range of hydraulic press solutions
-
Custom-built machines as per requirement
-
Competitive pricing
-
Reliable after-sales service
-
Timely delivery
-
Long-lasting and durable machines​
​
• Conclusion
A Four Column Hydraulic Press is an essential machine for industries requiring high precision, strength, and efficiency in pressing operations. At Dipak Machine Tools, we provide robust and high-performance hydraulic press machines designed to meet the needs of modern manufacturing industries.
With advanced engineering, durable construction, and customizable options, our Four Column Hydraulic Press machines deliver consistent performance, high productivity, and long service life, making them an ideal choice for industrial applications.
